Configure tools to require user approval before execution for enhanced control and safety

Tool Approvals

Tool approvals allow you to configure specific tools to require explicit user confirmation before execution. This provides enhanced control over potentially sensitive or destructive operations.

Overview

When a tool is configured to require approval:

Agent pauses execution when the tool is called
Approval request emitted in the data stream with tool details
User sees approval UI with tool name, arguments, and approve/deny options
Execution continues only after user approval
Tool executes normally with the original arguments

Configuration

SDK Configuration

Configure tool approvals using the McpToolSelection format when defining agent tools:

import { agent, tool } from "@inkeep/agents-sdk";

// Configure tools with approval requirements
const weatherAgent = agent("weather-forecast")
  .prompt("You help users get weather information.")
  .canUse(
    tool("weather-mcp").with({
      selectedTools: [
        "get_current_weather", // No approval required
        {
          name: "get_weather_forecast",
          needsApproval: true, // Requires user approval
        },
        {
          name: "delete_weather_data",
          needsApproval: true, // Requires user approval
        },
      ],
    })
  );

Visual Builder Configuration

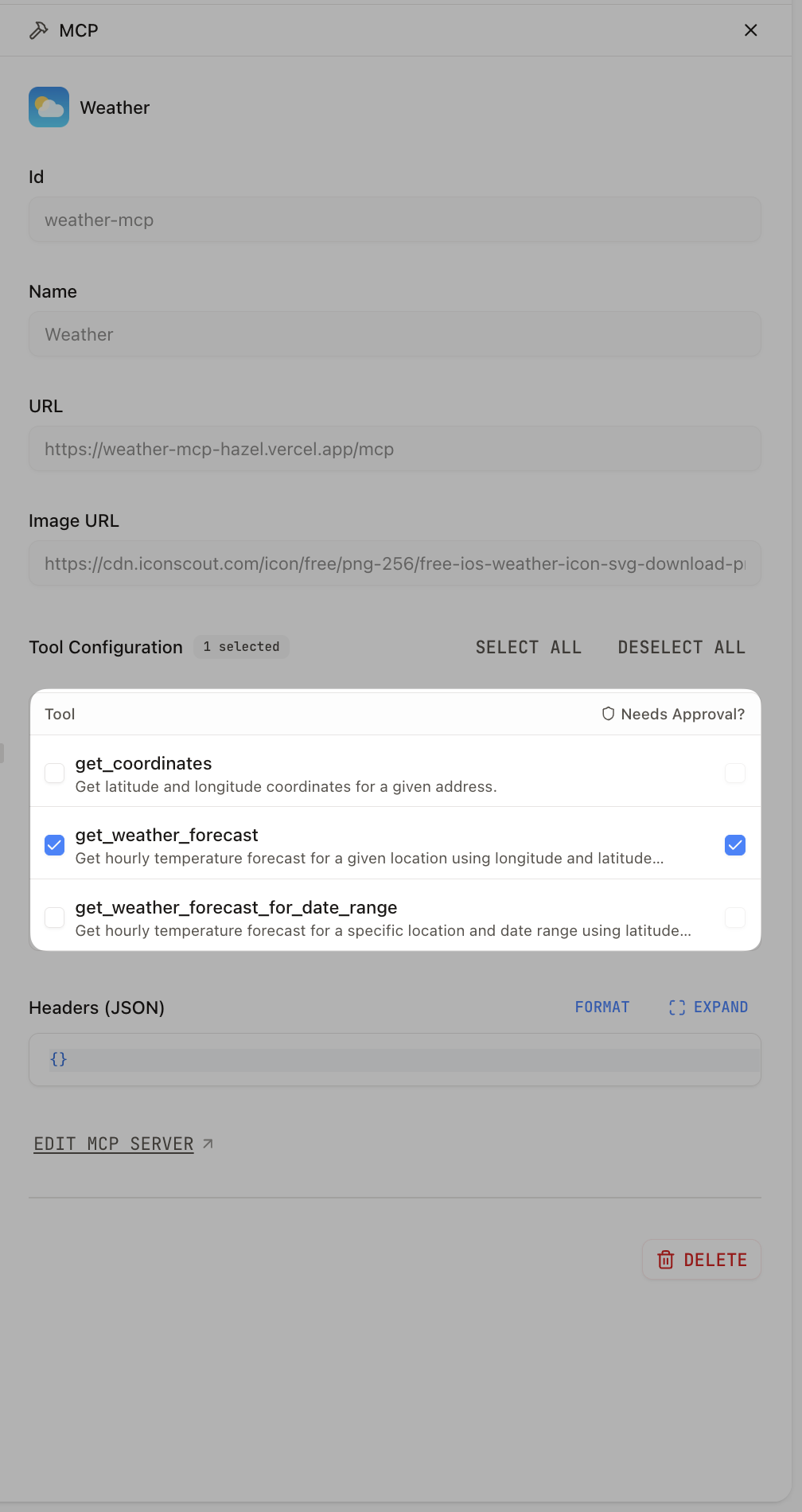

In the visual builder, configure tool approvals using the unified tool grid:

Navigate to your agent in the visual builder
Select an MCP tool node connected to your agent
Use the tool configuration grid with two columns:
- Tool column: Check to select/deselect tools
- Approval column: Check to require approval (only enabled for selected tools)

Copy Trace button in the timeline view for exporting conversation traces

Runtime Behavior

Agent Execution Flow

When an agent encounters a tool requiring approval:

Approval Flow:

1. Agent calls tool → 2. Execution pauses → 3. Approval request emitted
                                                           ↓
6. Tool executes ← 5. Execution resumes ← 4. User approves

Denial Flow:

1. Agent calls tool → 2. Execution pauses → 3. Approval request emitted
                                                           ↓
6. Returns denial message ← 5. Execution resumes ← 4. User denies

The agent receives proper feedback in both cases, ensuring natural conversation flow.

Event Stream Integration

Tool approval requests appear in the data stream as enhanced tool_call events:

{
  "type": "data-operation",
  "data": {
    "type": "tool_call",
    "label": "Tool call: delete_weather_data",
    "details": {
      "timestamp": 1726247200000,
      "subAgentId": "weather-agent",
      "data": {
        "toolName": "delete_weather_data",
        "input": {
          "location": "San Francisco",
          "date_range": "2024-01-01_to_2024-12-31"
        },
        "toolCallId": "call_abc123def456",
        "needsApproval": true,
        "conversationId": "conv_xyz789"
      }
    }
  }
}

Key fields for approval handling:

needsApproval: true - Indicates approval is required
toolCallId - Unique identifier for this tool execution
conversationId - Conversation context for the approval request
input - Tool arguments for user review

Tool Results

Approved tools execute normally and return their actual results.

Denied tools return a clear message to the agent:

{
  "type": "tool_result",
  "data": {
    "toolName": "delete_weather_data",
    "output": "User denied approval to run this tool: Operation too risky",
    "toolCallId": "call_abc123def456"
  }
}

This allows the agent to understand the denial and respond appropriately to the user.

Approval API

Endpoint

POST /api/tool-approvals

Authentication

Requires the same API key authentication as chat endpoints:

Authorization: Bearer YOUR_API_KEY

Request Format

{
  "conversationId": "conv_xyz789",
  "toolCallId": "call_abc123def456",
  "approved": true,
  "reason": "User confirmed the operation" // Optional
}

Parameters:

conversationId - The conversation context (from tool_call event)
toolCallId - The specific tool execution to approve/deny (from tool_call event)
approved - true to approve, false to deny
reason - Optional explanation for the decision

Response Format

Success (200):

{
  "success": true,
  "message": "Tool execution approved"
}

Error (404):

{
  "error": "Tool call not found or already processed"
}

Example Usage

curl -X POST http://localhost:3003/api/tool-approvals \
  -H "Authorization: Bearer YOUR_API_KEY" \
  -H "Content-Type: application/json" \
  -d '{
    "conversationId": "conv_xyz789",
    "toolCallId": "call_abc123def456",
    "approved": true,
    "reason": "User confirmed deletion is safe"
  }'

Client Integration

Detecting Approval Requests

Monitor the event stream for tool_call events with needsApproval: true:

// Example using EventSource for SSE
const eventSource = new EventSource("<RUN_API_URL>/api/chat");

eventSource.onmessage = (event) => {
  const { type, data } = JSON.parse(event.data);

  if (
    type === "data-operation" &&
    data.type === "tool_call" &&
    data.details.data.needsApproval
  ) {
    const { toolName, input, toolCallId, conversationId } = data.details.data;

    // Show approval UI to user
    showApprovalUI({
      toolName,
      arguments: input,
      onApprove: () => sendApproval(conversationId, toolCallId, true),
      onDeny: () => sendApproval(conversationId, toolCallId, false),
    });
  }
};

Sending Approval Responses

async function sendApproval(
  conversationId,
  toolCallId,
  approved,
  reason = null
) {
  try {
    const response = await fetch("<RUN_API_URL>/api/tool-approvals", {
      method: "POST",
      headers: {
        Authorization: `Bearer ${API_KEY}`,
        "Content-Type": "application/json",
      },
      body: JSON.stringify({
        conversationId,
        toolCallId,
        approved,
        ...(reason && { reason }),
      }),
    });

    if (!response.ok) {
      throw new Error(`Approval failed: ${response.statusText}`);
    }

    const result = await response.json();
    console.log("Approval processed:", result.message);
  } catch (error) {
    console.error("Failed to process approval:", error);
  }
}

React Integration Example

import { useChat } from 'ai/react';

export function ChatWithApprovals() {
  const { messages, input, handleInputChange, handleSubmit } = useChat({
    api: '/api/chat',
    headers: {
      'x-emit-operations': 'true', // Enable data operations
    },
  });

  const handleApproval = async (toolCallId: string, conversationId: string, approved: boolean) => {
    await fetch('/api/tool-approvals', {
      method: 'POST',
      headers: { 'Content-Type': 'application/json' },
      body: JSON.stringify({
        conversationId,
        toolCallId,
        approved,
      }),
    });
  };

  return (
    <div>
      {/* Chat messages */}
      <div>
        {messages.map((message) => (
          <div key={message.id}>
            <strong>{message.role}:</strong> {message.content}
            {/* Render tool approval buttons inline */}
            {message.parts?.map((part, index) => {
              if (
                part.type === 'data-operation' &&
                part.data.type === 'tool_call' &&
                part.data.details.data.needsApproval
              ) {
                const { toolName, toolCallId, conversationId } = part.data.details.data;

                return (
                  <div key={index}>
                    <button
                      type="button"
                      onClick={() => handleApproval(toolCallId, conversationId, true)}
                    >
                      Approve {toolName}
                    </button>
                    <button
                      type="button"
                      onClick={() => handleApproval(toolCallId, conversationId, false)}
                    >
                      Deny
                    </button>
                  </div>
                );
              }
              return null;
            })}
          </div>
        ))}
      </div>

      {/* Chat input */}
      <form onSubmit={handleSubmit}>
        <input value={input} onChange={handleInputChange} placeholder="Ask me anything..." />
        <button type="submit">Send</button>
      </form>
    </div>
  );
}
